BE-250
Corrugated Elbow Forming Machine
Spiral duct elbow machine for making air duct corrugated elbows
BE-250
Corrugated Elbow Forming Machine
Spiral duct elbow machine for making air duct corrugated elbows
The corrugated elbow forming machine is a duct elbow making machine that consists of two parts: the round duct corrugating machine and the corrugated duct pipe bending machine. It can efficiently process corrugated elbows with diameters from 100-250mm. The corrugated elbow forming machine first forms plain cylindrical tubes into corrugated straight duct pipes, and then the bending machine further bends these ducts into any desired elbow angle from 0-90°, greatly simplifying field installation. This metal elbow forming equipment uses a forming process where the sheet metal is crimped before bending. This method ensures fast production speed and high efficiency, while remaining simple to operate with low skill requirements for personnel, making it ideal for manufacturing various small-diameter corrugated elbows.

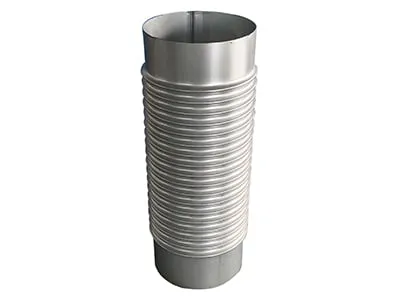

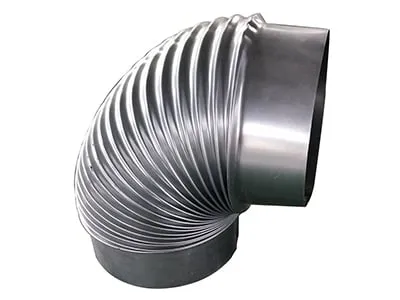

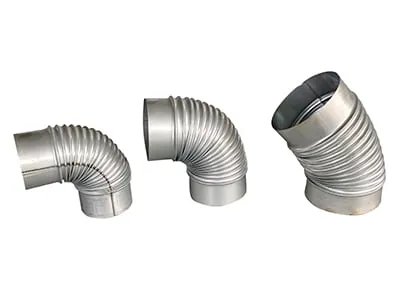

Samples of Corrugated Elbow
Request a Quote

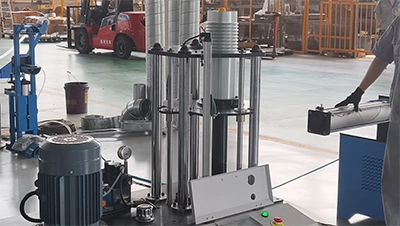

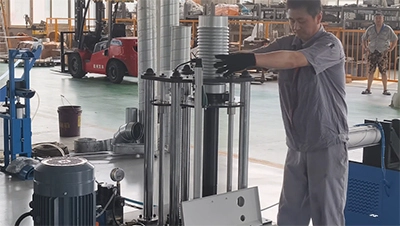

Round Duct Corrugating Machine

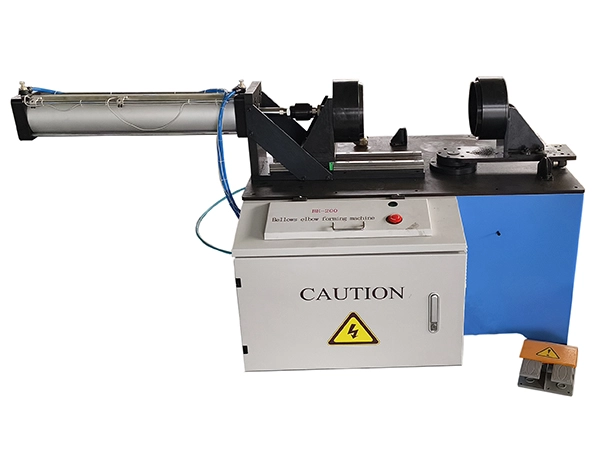

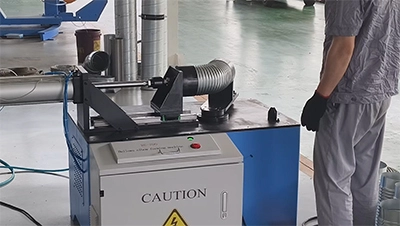

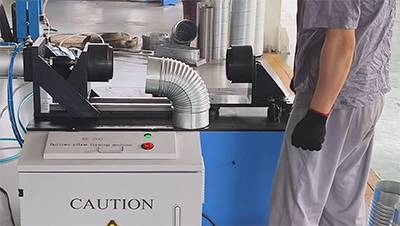

Corrugated Duct Pipe Bending Machine
Applications
This duct elbow making machine is suitable for producing corrugated elbows used in small-diameter ventilation duct systems for various buildings such as hotels, residences, and shopping malls. It can quickly produce corrugated elbows with diameters from 100-250mm to meet diverse installation requirements.
Features
- The corrugated elbow forming process involves corrugating and then bending the corrugated duct pipe into corrugated elbow, allowing the elbow to be formed at any angle for easy installation.
- Fast corrugated elbow production speed and high efficiency.
- Simple operation with low skill requirements for operators.
Specifications
| Duct elbow diameter | 100-250mm |
| Thickness | 0.4-0.8mm |
| Corrugated height | 5-9mm |
| Max. pipe length | 700mm |
| Power | 5.5kW |
| Machine dimensions | 1550×830×1600mm |
Main Parameters of Corrugated Duct Pipe Bending Machine
| Power | 1.5kW |
| Machine dimensions | 1800×1000×850mm |
| Machine weight | 350kg |
