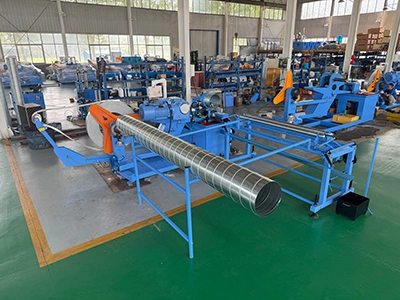

Spiral Duct Machine
The spiral duct machine is specialized equipment designed for the efficient and rapid manufacturing of circular spiral lock-seam ducts (spiral duct). Its core function is to meet the air conveyance needs across diverse building and industrial environments.
The spiral duct machine provides a site-instant, high-quality duct production solution for various scenarios requiring efficient, airtight conveyance of air or light materials. The ability to manufacture ducts on-site is especially beneficial for projects with tight schedules or restricted installation space, which significantly reduces transportation costs and field processing time.
DDJX offers integrated spiral duct machines and split-structure spiral duct machines to customers seeking continuous, high-volume production. The equipment supports the manufacture of spiral ducts across various diameters and thicknesses, matching diverse business requirements.
-
- Spiral Duct Forming Machine, DDGJ-1.2-1800-ZY (Integrated Type, 1800mm Diameter, 1.2mm Thickness)
- Structure: integrated type, suitable for transportation to the job site
- Spiral duct diameter range: 100mm to 1800mm
- Spiral duct thickness range: 0.5-1.2mm
- Feeding speed: 35 meters/minute, adjustable
-
- Spiral Duct Forming Machine, DDGJ-1.2-1800-ZF (Split Type, 1800mm Diameter, 1.2mm Thickness)
- Structure: split type, suitable for large-scale continuous production
- Spiral duct diameter range: 100mm to 1800mm
- Spiral duct thickness range: 0.5-1.2mm
- Feeding speed: 35 meters/minute, adjustable
-
- Spiral Duct Forming Machine, DDGJ-1.2-1500-ZY (Integrated Type, 1500mm Diameter, 1.2mm Thickness)
- Structure: integrated type, suitable for transportation to the job site
- Spiral duct diameter range: 100mm to 1500mm
- Spiral duct thickness range: 0.5-1.2mm
- Feeding speed: 27 meters/minute, adjustable
-
- Spiral Duct Forming Machine, DPCS-2-2000-ZY (Integrated Type, 2000mm Diameter, 2mm Thickness)
- Structure: integrated type, suitable for transportation to the job site
- Spiral duct diameter range: 200mm to 2000mm
- Spiral duct thickness range: 1.2-2mm
- Feeding speed: 25 meters/minute, adjustable
-

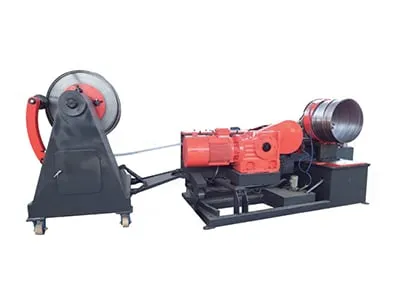

- Spiral Duct Forming Machine, GPM-3/300 (Split Type, 1500mm Diameter, 3mm Thickness)
- Structure: split type, suitable for continuous production
- Spiral duct diameter range: 350-1500mm
- Spiral duct thickness range: 2-3mm
- Feeding speed: 20 meters/minute, adjustable
Our Case Studies
-
November 15, 2005Mexican customer visited our factory for spiral duct machine acceptance.
-
November 10, 2010American customer purchased spiral duct machine.
-
May 18, 2013Large corrugated metal pipe machine is used to produce...
-
May 10, 2015Australian customer visited our factory for spiral corrugated metal...
Which spiral duct machine models balance speed and precision for high-volume daily workshop production?
Which spiral duct machine models balance speed and precision for high-volume daily workshop production?
The DDGJ-1.2-1800-ZY (Integrated) and DDGJ-1.2-1800-ZF (Split) models are suitable. Both feature an adjustable feed speed of 35 meters/minute to ensure high production efficiency. They utilize a fixed steel die forming process, which results in a tighter lock-seam and more precise output diameter compared to traditional spread-wing type duct machines, effectively balancing the required speed and precision for mass production.
What is the potential square meter production capacity of the spiral duct machine per day?
What is the potential square meter production capacity of the spiral duct machine per day?
Based on an 8-hour workday and accounting for material change time, the daily production capacity of spiral duct is 1000-1400 square meters.
What is the material loss rate associated with the spiral duct production process?
What is the material loss rate associated with the spiral duct production process?
Due to the formation of the seam as a four-layer folded lock-seam, the resulting material loss rate is approximately 12.5%.
Are there any wear parts or consumables required during spiral duct machine production?
Are there any wear parts or consumables required during spiral duct machine production?
Blades may become dull after multiple cuts but can be sharpened for continued use. Cutting stainless steel accelerates blade wear, so plasma cutting is recommended for that material. Emulsion fluid is the primary consumable.
What are the sites or space requirements for the spiral duct machine?
What are the sites or space requirements for the spiral duct machine?
The spiral duct machine has minimal site requirements. It can be operated at the construction site or mounted on a vehicle for mobile production.
