DDGJ-1.2-1500-ZY

Spiral Duct Forming Machine

Spiral tubeformer for manufacturing straight round spiral air ducts or helical tubes

(Integrated Type, 1500mm Diameter, 1.2mm Thickness) DDGJ-1.2-1500-ZY
  • (Integrated Type, 1500mm Diameter, 1.2mm Thickness) DDGJ-1.2-1500-ZY
  • (Integrated Type, 1500mm Diameter, 1.2mm Thickness) DDGJ-1.2-1500-ZY
  • (Integrated Type, 1500mm Diameter, 1.2mm Thickness) DDGJ-1.2-1500-ZY
  • (Integrated Type, 1500mm Diameter, 1.2mm Thickness) DDGJ-1.2-1500-ZY

    • DDGJ-1.2-1500-ZY

    Spiral Duct Forming Machine

    Spiral tubeformer for manufacturing straight round spiral air ducts or helical tubes

    • Structure: integrated type, suitable for transportation to the job site
    • Spiral duct diameter range: 100mm to 1500mm
    • Spiral duct thickness range: 0.5-1.2mm
    • Feeding speed: 27 meters/minute, adjustable

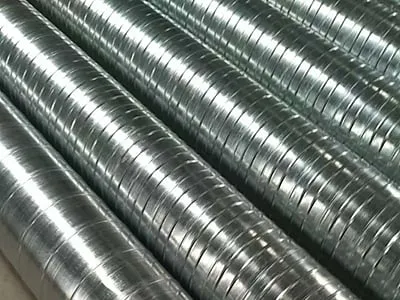

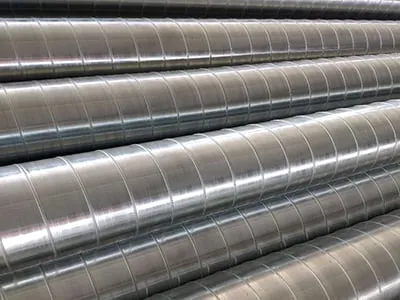

    Samples of Finished Spiral Ducts
    • Spiral Duct Forming Machine (Integrated Type, 1800mm Diameter, 1.2mm Thickness)
    • Spiral Duct Forming Machine (Integrated Type, 1800mm Diameter, 1.2mm Thickness)
    Request a Quote
    Specifications
    • Spiral duct diameter range100-1500mm
    • Thickness range (Galvanized steel)0.5-1.2mm (strip width 137mm)
    • Thickness range (Stainless steel)0.45-0.8mm (strip width 137mm)
    • Uncoiler (Coil inner diameter)460-520mm
    • Uncoiler (Max. coil outer diameter)1200mm
    • Uncoiler (Max. coil weight)1000kg
    • Lock-seam typeExternal lock-seam
    • Feeding speed0-27 meters/minute (adjustable)
    • Cutting methodRolling shear cutting or plasma cutting
    • Power systemCutting and flipping use pneumatic power; feeding roller clamping uses hydraulic power
    • Forming die materialSteel
    • Machine weight2000kg
    • Machine dimensions3.4×1.7×1.7m
    • Discharge rack size2.1×1.0×1.0m
    • Total power12kW
    • Power supply380V/50Hz/3Ph
    • Control methodTouch screen
    Features

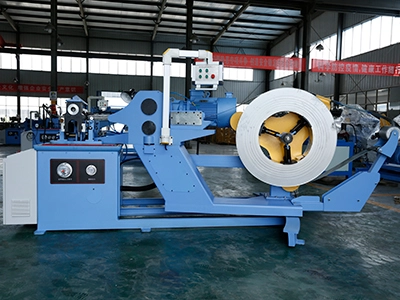

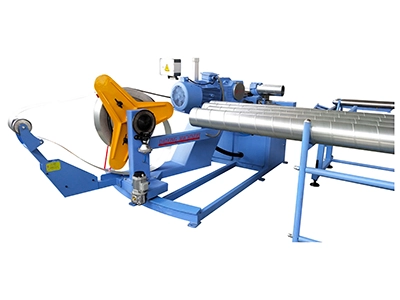

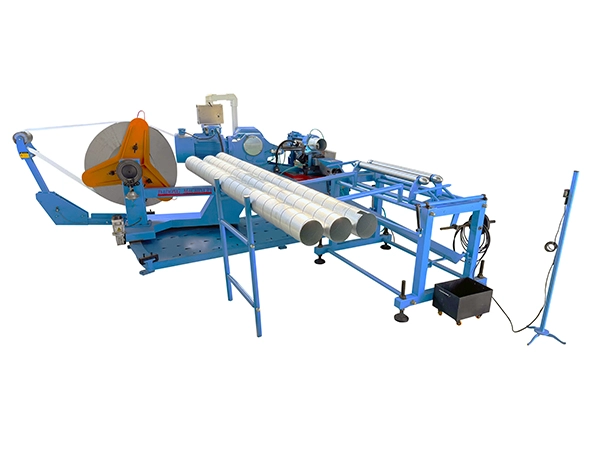

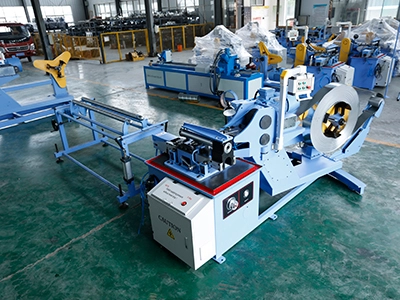

    (Integrated Type, 1500mm Diameter, 1.2mm Thickness) DDGJ-1.2-1500-ZY

    The spiral duct machine is specifically used for manufacturing spiral duct pipes of 0.5-1.2mm thickness. It uses a direct-connect integrated design, offering a compact structure that allows it to be transported to the construction site for efficient, on-site spiral duct fabrication.

    (Integrated Type, 1500mm Diameter, 1.2mm Thickness) DDGJ-1.2-1500-ZY

    With a 11kW main motor for strong power, the feeding speed of this air duct machine can reach 35 meters/minute, resulting in high efficiency.

    (Integrated Type, 1500mm Diameter, 1.2mm Thickness) DDGJ-1.2-1500-ZY

    This spiral duct machine uses die forming method to produce spiral duct pipes. Compared to traditional spread-wing type duct machines, this method results in a more secure lock-seam and more precise output diameter.
    Related Duct Manufacturing Equipment
    Get in Touch

    With over 20 years of experience in the production of duct fabrication machinery, DDJX is a trusted manufacturer serving 1,000+ clients across the HVAC and ventilation industries. Send us your request today.

    See Other Categories

    The DDGJ-1.2-1800-ZY (Integrated) and DDGJ-1.2-1800-ZF (Split) models are suitable. Both feature an adjustable feed speed of 35 meters/minute to ensure high production efficiency. They utilize a fixed steel die forming process, which results in a tighter lock-seam and more precise output diameter compared to traditional spread-wing type duct machines, effectively balancing the required speed and precision for mass production.

    Based on an 8-hour workday and accounting for material change time, the daily production capacity of spiral duct is 1000-1400 square meters.

    Due to the formation of the seam as a four-layer folded lock-seam, the resulting material loss rate is approximately 12.5%.

    Blades may become dull after multiple cuts but can be sharpened for continued use. Cutting stainless steel accelerates blade wear, so plasma cutting is recommended for that material. Emulsion fluid is the primary consumable.

    The spiral duct machine has minimal site requirements. It can be operated at the construction site or mounted on a vehicle for mobile production.
