CSP-3-5000
Corrugated Metal Pipe Machine

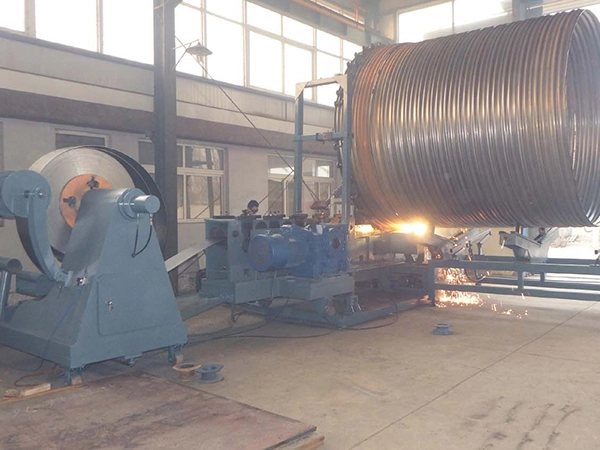

Spiral corrugated pipe making machine for converting steel coil into large diameter corrugated steel culvert pipes
CSP-3-5000
Corrugated Metal Pipe Machine
Spiral corrugated pipe making machine for converting steel coil into large diameter corrugated steel culvert pipes
Features
- This corrugated metal pipe machine is primarily used for producing large-diameter, heavy-wall spiral ribbed corrugated steel pipes, with single pipe lengths up to 12 meters.
- Designed for manufacturing spiral pipes with a thickness of 1.5-3.0mm, this corrugated metal pipe machine utilizes a split structure design, which allows it to accommodate larger steel coils, reducing the frequency of changes and thereby increasing production efficiency.
- The corrugated steel pipe machine is equipped with a 37kW main motor for robust power. The feeding speed reaches 20 meters/minute, ensuring high efficiency.
- 320mm wide steel strips can be adopted in the corrugated metal pipe machine, utilizing wider stock to substantially increase sheet material utilization and pipe output.
- Corrugation is pressed directly onto the plate material, resulting in finished pipes with superior load-bearing capacity.
Request a Quote
Applications

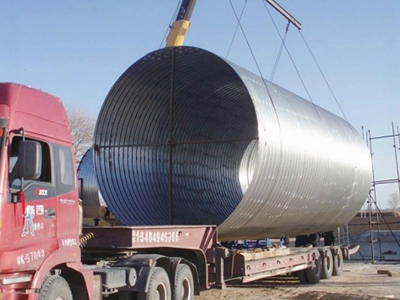

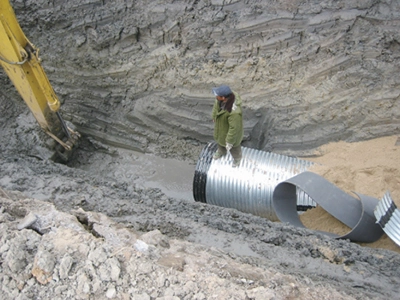

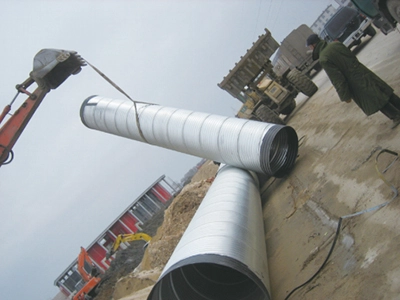

This corrugated pipe machine is primarily used for manufacturing corrugated metal pipes (CMP) for heavy-duty civil and industrial engineering applications, including:
- Culverts
- Wind power pile foundations
- Pre-buried sewage pipelines
- Seabed sand fixation
- General drainage projects
Specifications of Corrugated Metal Pipe Machine
- Spiral duct diameter range300-5000mm
- MaterialCold-rolled steel (1.5-3.0mm)
- Steel strip width330mm, 285mm
- UncoilerAutomatic feeding, hydraulic support, pneumatic brake
- Uncoiler (Max. load capacity)3000kg
- Coil inner diameter range460-520mm
- Max. coil outer diameter1400mm
- Seam typeSpiral lock-seam
- Corrugation size76×25mm, 68×13mm
- Feeding speed0-20 meters/minute (adjustable)
- Cutting methodSynchronous plasma cutting
- Power systemElectric, hydraulic
- Machine weight15 tons
- Machine dimensions4.5×2.1×1.4m
- Uncoiler size2.1×1.2×1.75m
- Discharge rack size3.2×2.1×1.2m
- Total power44.5kW
- Power supply380V/50Hz/3Ph
(other power supplies are also available)
- Control systemPLC
Specifications of Corrugated Metal Pipe

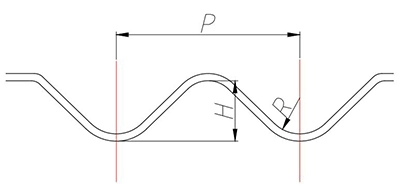

| Type |
Size (mm) |
| Wave pitch (P) |
Wave depth (H) |
Wave radius (R) |
| 1RS |
68±2 |
13 |
12 |
| 3RS |
76±2 |
25 |
15 |
| Pipe diameter (D) |
1RS |
3RS |
| Wall thickness |
Wall thickness |
| 1.6 |
2.0 |
2.5 |
3.0 |
2.0 |
2.5 |
3.0 |
| 300 |
O |
O |
|
|
|
|
|
| 400 |
O |
O |
|
|
|
|
|
| 450 |
O |
O |
|
|
|
|
|
| 500 |
O |
O |
|
|
|
|
|
| 600 |
O |
O |
O |
|
|
|
|
| 700 |
O |
O |
O |
|
|
|
|
| 800 |
O |
O |
O |
|
|
|
|
| 900 |
O |
O |
O |
|
|
|
|
| 1000 |
O |
O |
O |
|
|
0 |
|
| 1200 |
O |
O |
O |
O |
O |
O |
O |
| 1350 |
|
O |
O |
O |
O |
O |
O |
| 1500 |
|
|
O |
O |
O |
O |
O |
| 1650 |
|
|
O |
O |
O |
O |
O |
| 1800 |
|
|
|
O |
|
O |
O |
| 2000 |
|
|
|
|
|
O |
O |
| 2200 |
|
|
|
|
|
O |
O |
| 2400 |
|
|
|
|
|
O |
O |
| 3000 |
|
|
|
|
|
O |
O |
