Pipe Clamp Forming Machine
Automatic pipe clamp bending machine for making pipe saddle clamps used to mount spiral ducts and pipes
The pipe clamp forming machine is primarily used for producing duct pipe saddle clamps or similar curved shapes, performing operations like punching, bending, and forming on the flat steel band. This pipe clamp bending machine utilizes CNC technology to achieve automated processing, improving duct production efficiency and product quality. It is ideal for making pipe clamps that are widely used in the ventilation ducting, hardware, and related industries.
Applications

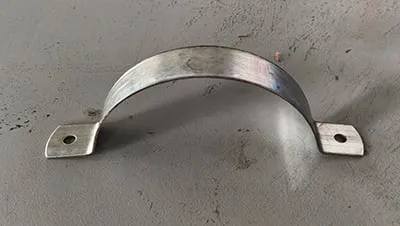

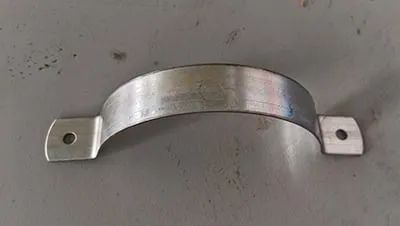

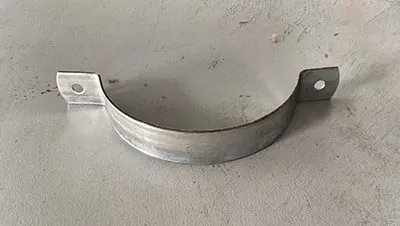

This pipe clamp forming machine is used for producing flat band pipe clamps.
Request a Quote
Specifications
- Forming width20-50mm
- Forming thickness2-5mm
- Max. feeding speed55m/min
- Max. bending speed800°/sec
- Min. diameter30mm
- Max. diameter1500mm
- Feeding servo motor3kW/1unit
- Bending servo motor3kW/1unit
- Telescopic servo motor1kW
- Punching cylinder125×30
- Cutting cylinder150×50
- Feeding hydraulic motor7.5kW
- Feeding roller materialcr12mov
- Hydraulic systemHuade
- Electric control systemWeichuang/Xinjie
- Hydraulic pumpPV2R2-41RAF1
- Die materialDC53
- Machine dimensions2.2×1.6×1.8m
- Machine weight1.6T
Features
- The CNC operation interface is simple to operate and fully functional.
- Wide range of application: Capable of producing flat band clamps for transportation, power, and seismic bracing brackets.
- Servo motors ensure high precision and accurate dimensions.
- Supports customization for various models of flat steel band to meet production needs.
