CM-150
Duct Collar Making Machine
Duct collar maker for forming round start collars with integration of notching, beading, crimping and rolling in one pass

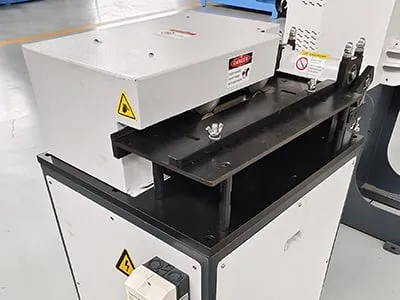

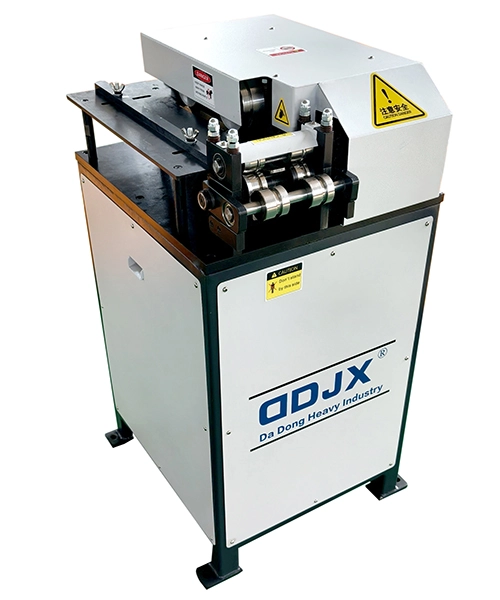

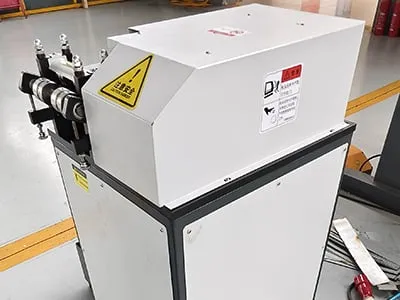

The CM-150 duct collar making machine is a highly efficient, multi-functional metal processing device that integrates four core functions: notching, beading, crimping, and rounding. It is specifically designed for forming duct components used to connect dampers and round duct pipes. The duct collar making machine supports a flexible adjustable strip width of 80-150mm and can complete multiple processes in a single run, significantly improving production efficiency and product consistency. It is the ideal metal processing equipment for the automated, customized production of duct collars.
Applications

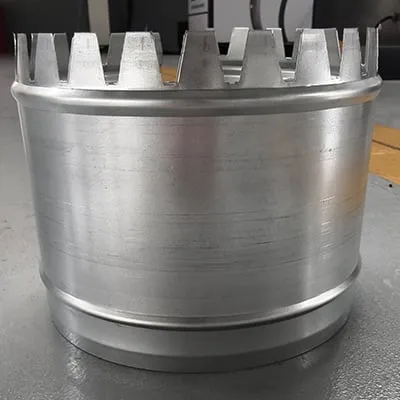

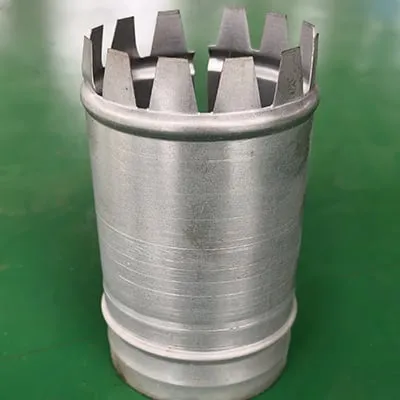

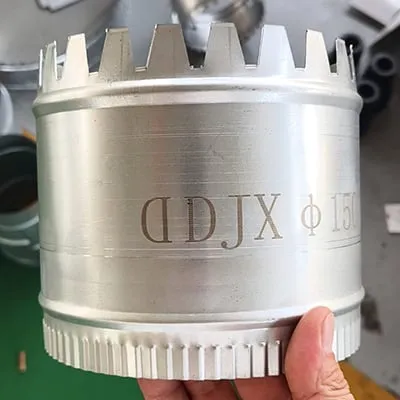

This duct fittings machine is specifically used for producing duct collars that connect duct dampers and round duct pipes in sheet metal ductwork.
Request a Quote
Specifications
- Processing thickness0.4-0.7mm
- Diameter range90-400mm
- Strip width80-150mm (adjustable)
- Notch depth17mm (standard)
- Notch gapApprox. 21mm (center distance)
- Processing speed13m/min
- Motor380V/3Ph/50Hz, 1.5kW
- Machine dimensions610×610×1060mm
- Machine weight140kg
Features
- A single duct collar making machine integrates four core functions—notching, beading, crimping, and rounding—achieving fully automatic, single-pass forming. This significantly reduces intermediate transfers and equipment investment, boosting air duct production efficiency.
- The duct collar machine supports stepless adjustment of strip width from 80-150mm and can process various specifications of workpieces with diameters from 90-400mm and thicknesses from 0.4-0.7mm. This offers strong adaptability to diverse order requirements.
- Notch depth and gap are precisely controlled, the rounded shape is uniform and consistent, and the processing speed can reach 13m/min, ensuring products have excellent assembly and sealing properties.
