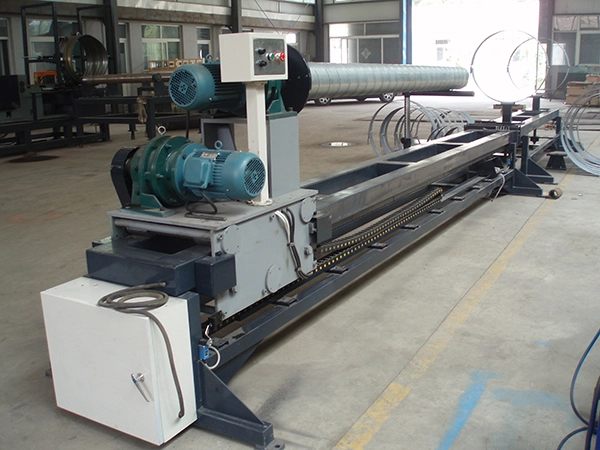

TG-1100
Dual Wall Insulated Spiral Pipe Machine
Spiral duct machine for making double wall spiral ducts with mineral wool insulation
TG-1100
Dual Wall Insulated Spiral Pipe Machine
Spiral duct machine for making double wall spiral ducts with mineral wool insulation
Rock wool insulated spiral pipe is an insulation structure commonly used in heating, cooling, and chemical pipeline systems. It consists of multiple layers of material, offering excellent insulation performance and mechanical strength, suitable for long-distance transport in high-temperature and high-pressure environments.
Specifications
- Max. diameter of outer pipe: 1100mm
- Length of spiral pipe: 4m
- Total power: 6kW
- Machine dimensions: 9×1×1.6m
Request a Quote
Dual Wall Insulated Spiral Pipe Structure
- Inner steel pipe: Serves as the main channel for the conveyed medium, typically made of seamless or spiral-welded steel, often carbon or stainless steel, with high pressure resistance.
- Rock wool insulation layer: Wrapped around the inner steel pipe, its main purpose is thermal insulation to reduce heat loss. Rock wool is an inorganic fiber material with high-temperature resistance and excellent fire protection properties.
- Outer steel casing (steel-over-steel): Covers the insulation layer, providing protection and support while enhancing the overall structural resistance to pressure.
TG-1100 dual wall insulated spiral pipe machine is used for manufacturing rock wool insulated spiral pipes by fitting two steel pipes together and adding rock wool insulation in the space between them.
