MJ-1.2

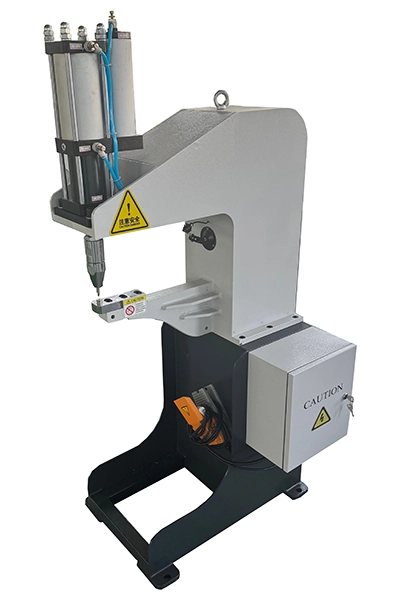

Sheet Metal Clinching Machine
Button lock machine for joining metal sheets together without screws or rivets
MJ-1.2
Sheet Metal Clinching Machine
Button lock machine for joining metal sheets together without screws or rivets
Applications
The rivet-less clinching machine is ideal for clinching of refrigerator / air conditioner housings, washing machine brackets, inner car door panel brackets, instrument housings, and similar applications.

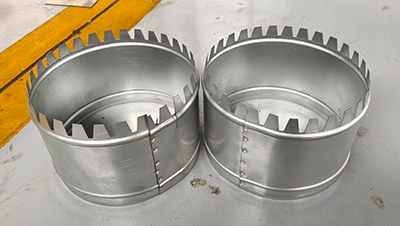

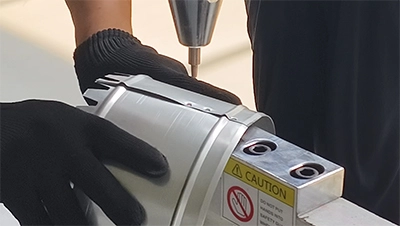

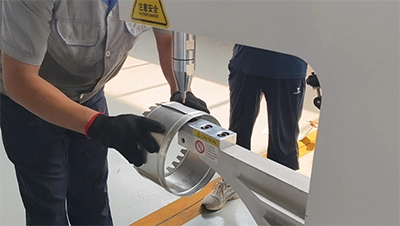

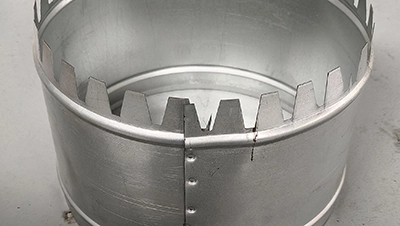

Applicable Round Duct Pipe Sizes
| Round pipe diameter | Die insertion length into pipe |
| 80mm | 50mm |
| 100mm | 120mm |
| 125mm | 175mm |
| 150mm | 210mm |
| 200mm | 270mm |
| 230mm | 380mm |
Request a Quote
Specifications
- Clinching length400mm (unidirectional)
- Thickness range0.4-1.2mm
- Power systemAir-hydraulic booster cylinder
- Power system (Air pressure)0.4-0.8MPa
- Power system (Max. hydraulic pressure)5000kg
- Forming die materialSteel
- Machine weight220kg
- Machine dimensions (Length)800mm
- Machine dimensions (Width)700mm
- Machine dimensions (Height)1800mm
- Total powerUp to 100W
- Power supply220V/50Hz/2Ph (one neutral, one live)
415V, 400V/50-60Hz/2Ph (two live wires)
- ControllerPLC
- DiesFive sets: 0.3-0.4mm, 0.5-0.6mm, 0.7-0.8mm, 0.9-1.0mm, 1.1-1.2mm
Features

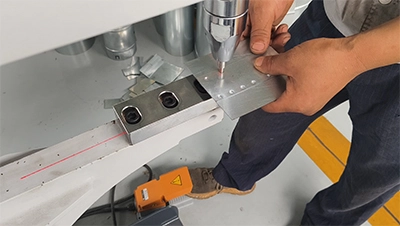

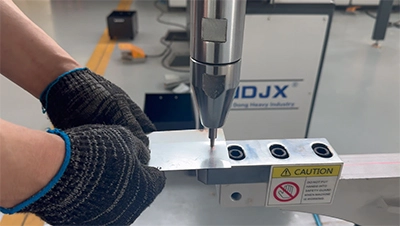

The rivet-less clinching machine is used for joining metal sheets, capable of clinching 0.4-1.2mm thick metal sheets. The corresponding punch can be changed to suit different sheet thicknesses.
Sheet metal joining uses no welding materials, making the process cost-effective and highly efficient.
Simple and easy to operate, making the industrial production process more efficient, especially the air duct fabrication process.
