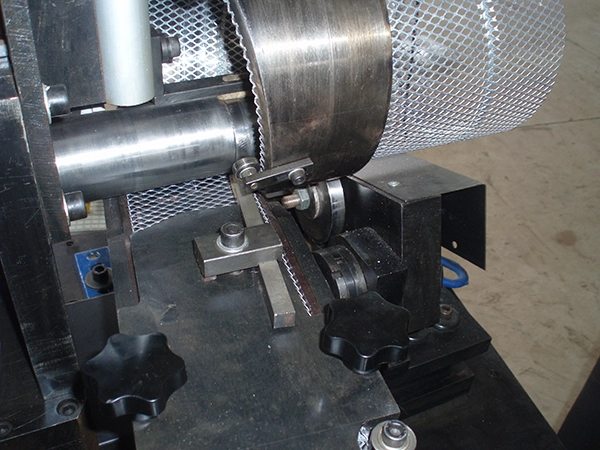

AF-500
Spiral Mesh Tube Forming Machine
Spiral tubeformer for manufacturing diamond mesh spiral tubes
AF-500
Spiral Mesh Tube Forming Machine
Spiral tubeformer for manufacturing diamond mesh spiral tubes
The spiral mesh tube forming machine is specially designed for producing mesh spiral tubes from 0.5-1.0mm thick expanded metal mesh or perforated sheet with diamond openings. It uses a split design that supports larger steel coils, reducing the frequency of material changes and increasing production efficiency. The spiral mesh tube machine features a low total power of 2.6kW, making it energy efficient and environmentally friendly. It utilizes a forming die output, which results in a more secure lock-seam and precise output diameter compared to traditional spread-wing type spiral tube machines.
Applications
The mesh tubes manufactured by this spiral mesh tube forming machine are mainly used as filter support components.
Request a Quote
Specifications
- Spiral mesh tube diameter range80-500mm
- MaterialExpanded metal mesh, perforated galvanized sheet
- Material (Thickness)0.5-1.0mm
- Material (Strip width)109mm (or 124mm)
- Cutting methodContinuous cut-to-length
- Total power2.6kW
- Machine dimensions1300×950×1800mm
Features
- Wide application range: tube diameter range of 80-500mm and material thickness of 0.5-1.0mm meet diverse specification requirements.
- High production efficiency: The split-type steel coil changing design reduces frequent material changes, increasing output capacity.
- Low energy consumption: Total power is only 2.6kW, promoting energy saving and environmental protection.
- Reliable structure: Uniform die output and a stable transmission system ensure precise spiral tube formation.
- Simple operation: Suitable for continuous spiral mesh tube production, reducing manual adjustments and enhancing ease of use.
