OM-3000L
Oval Duct Forming Machine (Ovalizer Machine)
Transforming the round spiral duct into flat oval duct
OM-3000L
Oval Duct Forming Machine (Ovalizer Machine)
Transforming the round spiral duct into flat oval duct

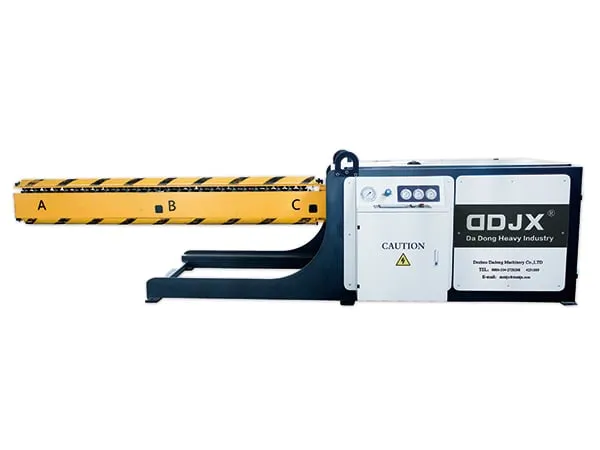

The oval duct forming machine, or ovalizer machine, uses hydraulic expansion to transform round spiral ducts into flat oval ducts (or ovalized ducts). This process creates ductwork perfectly suited for installation in areas with limited vertical space or constrained architectural designs. The resulting flat oval duct pipes can be joined using a simple slip-joint method. Featuring an adjustable die, the oval duct machine accommodates various diameters and specifications of round ducts, expanding the application scope of standard spiral ducts.
Request a Quote

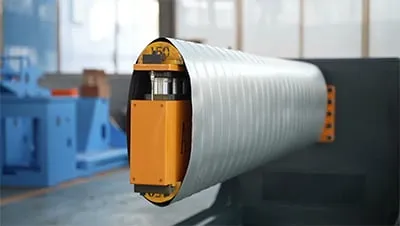

Round spiral duct is processed by the pre-pressing machine, then hydraulically expanded by the oval duct machine.

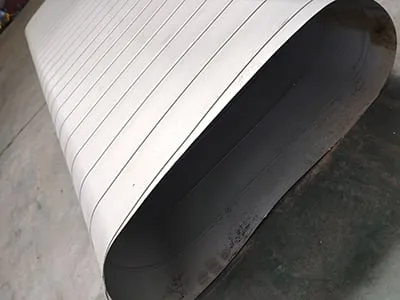

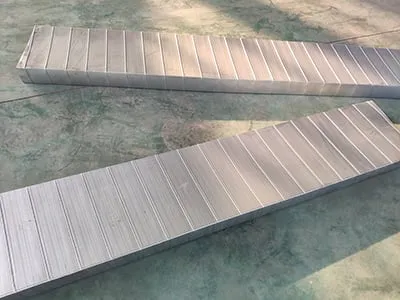

After the spiral oval duct has been hydraulically expanded and formed.
Specifications
- Max. thickness1.2mm
- Effective length3 m
- Round duct diameter400-1500mm
- Flat oval duct size (Height)150-500mm
- Flat oval duct size (Width)520-2300mm
- Power11kW, 380V/50Hz/3Ph
- Working pressure25MPa
- Machine dimensions5.3×1.3×1.2m
Details

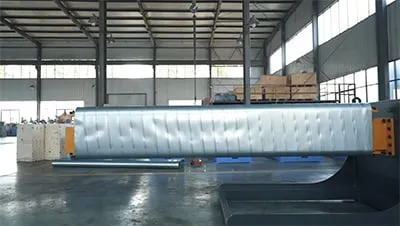

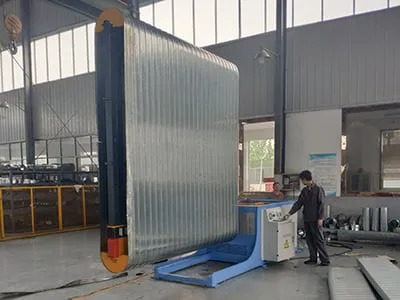

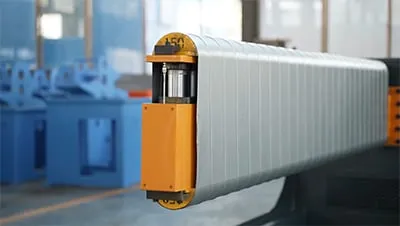

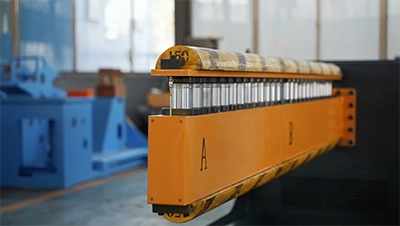

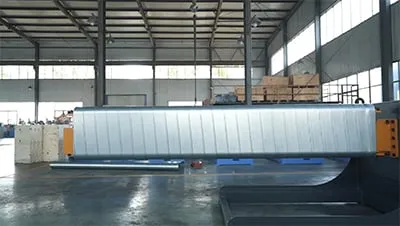

Hydraulic expansion for flat oval duct forming

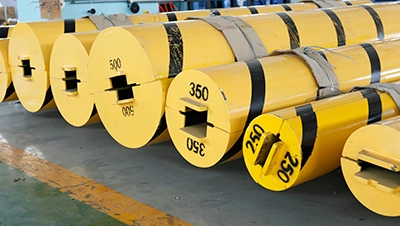

Equipped with an oval duct flanging die, used for slip-joint connections of the oval duct

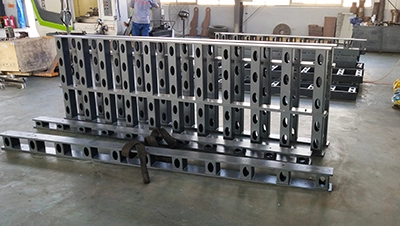

Oval duct machine support
